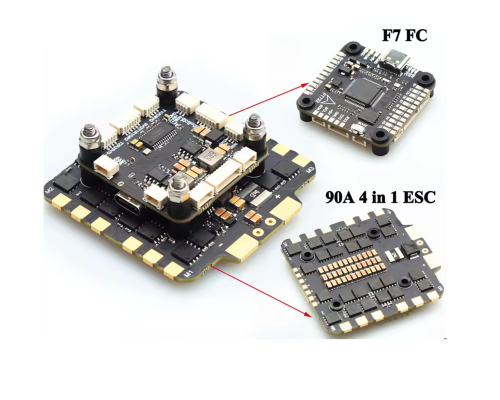

Контролер польоту SurpassHobby F722 90A 4in1 BLS ESC Stack 3-8S

Specifications:

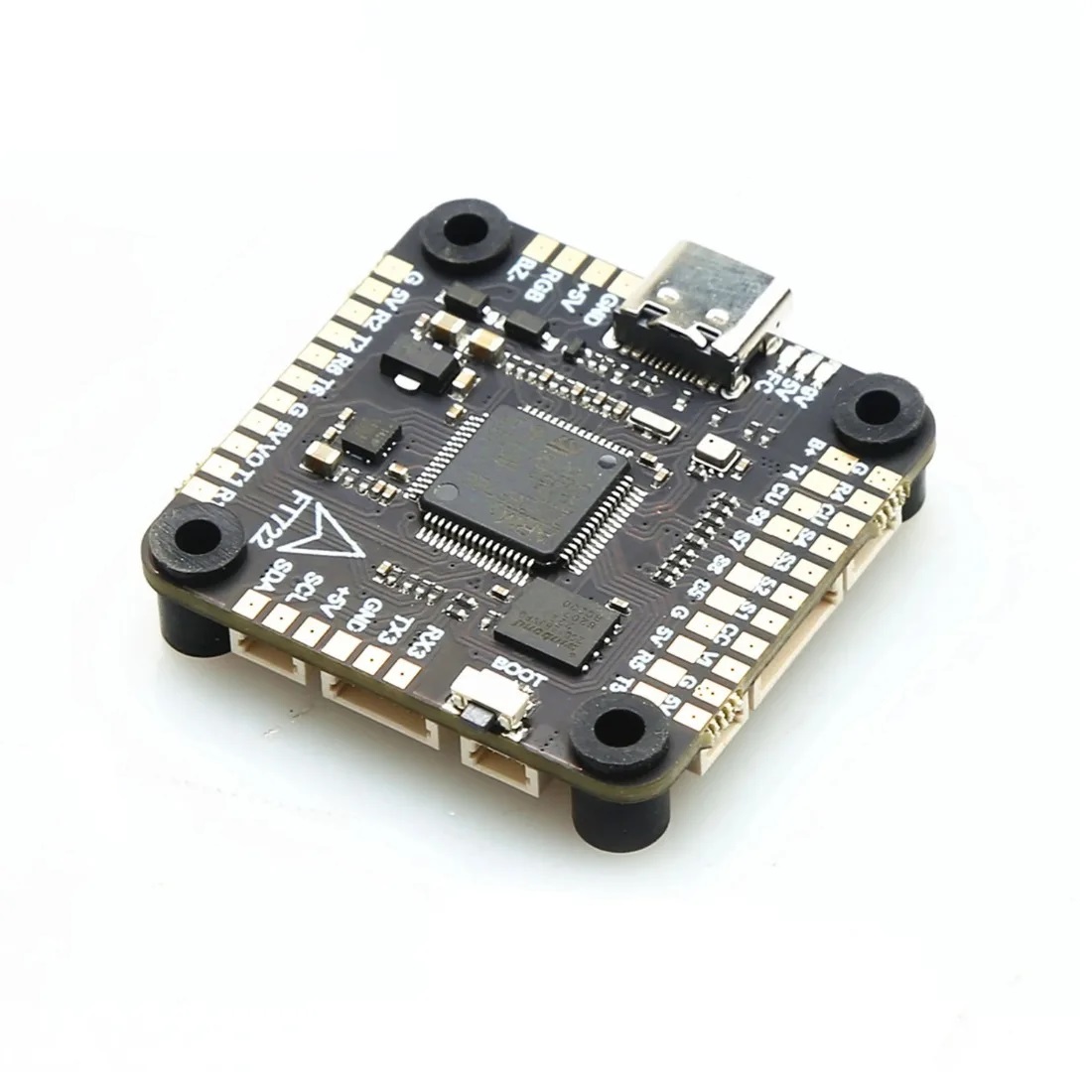

(Model): F722 Flight Controller

(MCU) STM32F722RET6

(IMU) ICM-42688

(OSD): AT7456E

(Baro) SPL06-001

(Blackbox): 16MB

(Input voltage): 3-8S Lipo(11.4-36V)

5V-BEC: 5V/2.5A ±0.1V

10V-BEC: 10V/2A(USER1)

IO2: USER2

(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX

UART: UART1/2/3/4/5/6

IIC: 12C1

Led Strip:YES

(Buzzer): 5V

(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600

USB: TYPE-C

(Current port): YES

(Voltage sensor) YES

DFU (DFU button): YES

(Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX

(Size): 36*36MM

(Mounting Hole) 30.5*30.5*4MM

(Weight) 8.8g

Item Name: BLS 90A 30.5x30.5 4-in-1 ESC

MCU: EFM8BB21F16G

MOSFET: High performance MOSFET

Power Input: 3-8S LiPo

Continuous Current: 90 * 4

Burst Current: 110A(10seconds)

ESC Telemetry :NO

Current Sensor Scale:200

ESC Protocol :DSHOT300/600

Firmware: Q_H_40_24_v0.19.2

Mounting :30.5 x 30.5mm( 4mm hole diameter)

Dimension :57(L) * 56(W)

Weight 28g
